INFORMATION MANUAL FOR ARTIFICIAL EGG INCUBATION

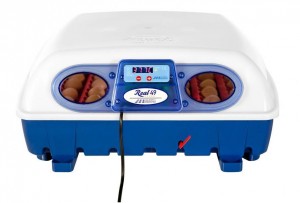

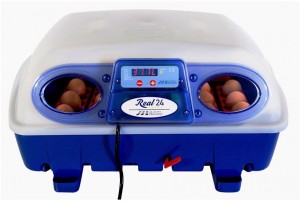

REAL 24/49

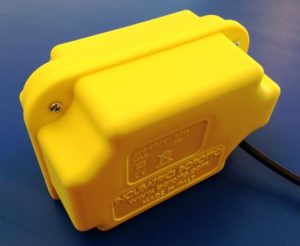

The REAL incubator is designed for incubating eggs from hens, pheasants, guinea fowl, quails, gray partridges, turkeys, palmipeds, peahens, pigeons, exotic birds and birds of prey. REAL semi-automatic is equipped with an egg turning system manually activated from the outside by a lever connected to the egg basket placed in the base of the incubator. The machine can be fitted with a motor to automatically oscillate the egg basket (installation instructions supplied with the motor). REAL automatic is equipped with a motor for automatic oscillation of the egg basket. A high-grade steel electric heater creates the necessary heat, and is controlled by a high-precision electronic thermostat which regulates the temperature in the incubator (from 30°C to 40°C) and keeps it constant and precise. The temperature is set by pressing the (+) and (-) buttons on the control panel. A turbine fan distributes warm, humid air evenly throughout the incubator. Natural “surface” humidification is guaranteed by moulded trays in the bottom of the incubator, which are filled from the outside by two vents on the front feet of the machine, a practical system that eliminates the need to open the incubator and dissipate heat and humidity. REAL semi-automatic and automatic

• Power: Real 24 100W , Real 49 150W
• Display: digital temperature control with decimal point
• Ventilation: turbine
• Thermostat: electronic precision +/- 0.1°C
• Humidity in incubator: 45-55% with water in one tray, 60-65% with water in 2 trays.
• Number of rotations in 24h : Real semi-auto.minimum 4 times , Real auto one inclination every 2h.

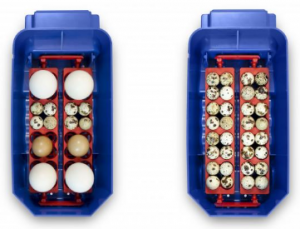

• Real 49 capacity: 49 medium/large eggs or 196 small eggs.
• Real 24 capacity: 24 medium/large eggs or 96 small eggs.
